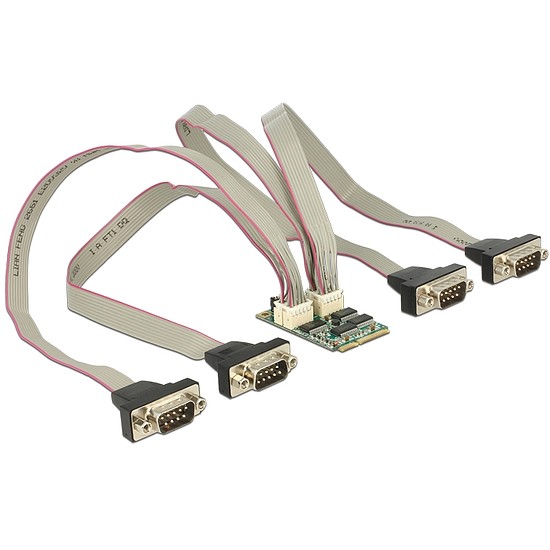

Delock Module MiniPCIe I/O PCIe full size 4 x Serial RS-232 with Voltage supply (95244)

Termékleírás

This MiniPCIe adapter by Delock expands your system by four additional serial ports, which you can lead out through the slot bracket. You can connect different serial devices like printer, scanner, modem etc. to this adapter. Műszaki adatok: Connector: on the module: 4 x 10 pin pin header male on the slot bracket (standard) 2 x: 2 x serial RS-232 DB9 male with screw nuts or on the slot bracket (low profile) 4 x: 1 x serial RS-232 DB9 male with screw nuts Chipset: Exar XR17V354 Form factor: MiniPCIe full size Interface: PCI Express revision 2.0 Data transfer rate up to 921.6 Kb/s Selectable voltage supply 5 V / 12 V or RI Compatible with 16C550 UART Cable length: ca. 30 cm (incl. connector) Rendszerkövetelmények Windows Vista/Vista-64/7/7-64/8/8-64/8.1/8.1-64, Linux Kernel 2.6 Mainboard with a free MiniPCIe slot with a PCIe interface A csomag tartalma MiniPCIe module 4 x serial connection cable (pin header > DB9) Power cable 2 x standard slot bracket with two DB9 ports 4 x low profile slot bracket with one DB9 port Driver CD User manual Csomag Doboz Gyártó: Delock Szélesség cm: 13,5 Hosszúság cm: 17 Magasság cm: 3
