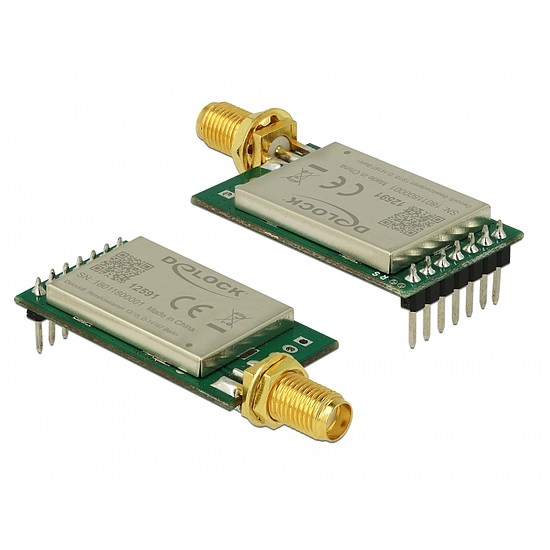

Delock IoT LoRa Radio Module 868 MHz 20 dBm TTL (3.3 V) pin header male > SMA jack (12591)

Termékleírás

This highly energy-efficient IoT LoRa radiomodule by Delock is suitable for LPWAN, M2M, IoT or Industry 4.0 applications. Via the UART TTL interface components such as sensors, controllers, GNSS trackers, LoRaWAN gateways etc. can be equipped with this LoRa compatible radio module. Due to the flexible output power of the module, a wide spectrum of antennas and thus a large transmission / reception range is possible. The LoRa data are always transmitted encrypted in a secure radio network and thus remain protected from unauthorized access. Energy efficiency The IoT LoRa module supports four energy-saving modes and, with its very low power consumption (4 A), is suitable for use with rechargeable batteries. RF output power There are four power levels available on the RF output of the IoT LoRa module for the antenna. Forward Error correction (FEC) The module can detect radio interference automatically and actively prevent transmission errors. This ensures error-free data transmission and secures the range of the transmission. Műszaki adatok: Connectors: 1 x SMA jack 1 x 7 pin pin header male Pitch: 2.54 mm Chipset: Semtech SX1276 Interface: UART TTL (3.3 V) FIFO: 2 x 512 byte Frequency range: 862 - 893 MHz Channels: 32 Sensitivity: -146 dBm @ 2,4 Kbps Transmission power: 10 - 20 dBm Air data rate: 0.3, 1.2, 2.4, 4.8, 9.6, 19.2 Kbps Energy modes: (Normal, Wake-up, Power-saving, Sleep) Supports WOR (Wake On Radio) Supports FEC (Forward Error Correction) Power supply: 3.3 - 5.2 V Current consumption: 120mA@20dBm Operating temperature: -40 C ~ 85 C Relative humidity: 10 - 90 % (non condensing) Dimensions (LxWxH): ca. 47.8 x 21.0 x 14.2 mm Weight: ca. 6.7 g Rendszerkövetelmények Antenna with SMA connector Controller with TTL (3.3 V) interface A csomag tartalma Module Csomag Doboz Gyártó: Delock Szélesség cm: 15 Hosszúság cm: 15,5 Magasság cm: 2
